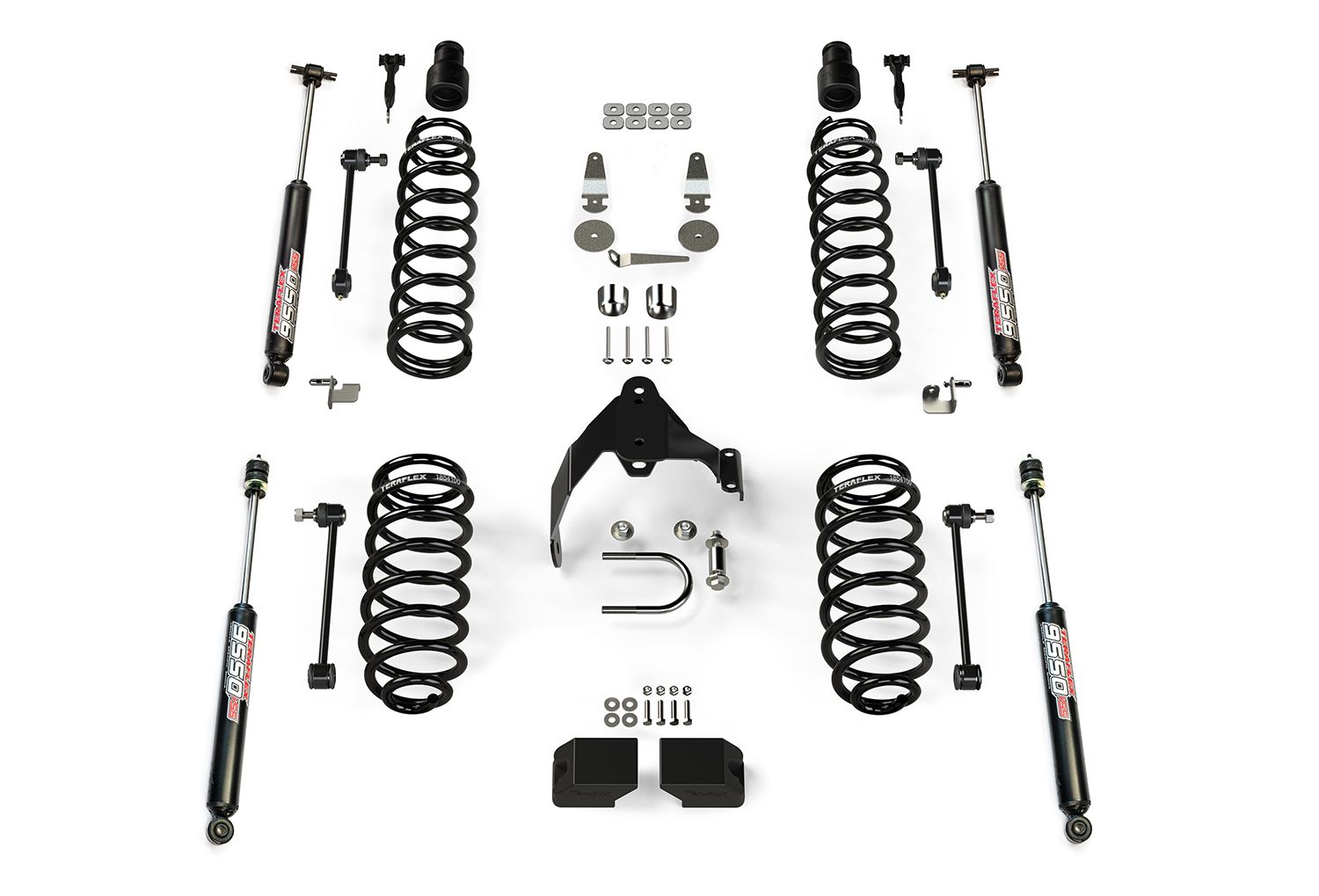

JK: 3” Coil Spring Base Lift Kit & 9550 VSS Twin-Tube

The TeraFlex JK 2dr: 3" Coil Spring Base Kit includes just the basic lift components only and doesn't have the drivability of a full suspension system. Requires longer preset or adjustable control arms and adjustable front track bar to correct suspension geometry. We recommend Falcon Performance Shocks or TeraFlex 9550 VSS Shocks. These are the only shock absorbers engineered to work with TeraFlex lift coil springs to improve both compressions and rebound for optimal vehicle stability. Coil Spring Base Lift Kits are offered with TeraFlex 9550 VSS Twin-Tube Shocks or without shock absorbers. Falcon Performance Shocks are available separately.

Features & Benefits:

The TeraFlex JK 2dr: 3" Coil Spring Base Kit includes just the basic lift components only and doesn't have the drivability of a full suspension system. Requires longer preset or adjustable control arms and adjustable front track bar to correct suspension geometry.

Fitment Info:

• JK Wrangler (2-Door)

• Lift Height: 3"

• Max Tire Diameter: 35"

Product Notes:

• Caster correction required – NOT INCLUDED.

• Requires aftermarket wheels w/ 4.75” backspacing or less – or Offset Wheel Adapters (# 1055000) for stock wheels – NOT INCLUDED.

• Driveshaft modifications may be necessary w/ this suspension system. See the TeraFlex Rzeppa High Angle CV Kit (# 1744014).

• 2007-2011 JK Wrangler/Unlimited models will require Extended Length Front Brake Lines (# 4353300).

• Requires longer shocks (NOT INCLUDED in base kit) – we recommend Falcon Performance Shocks or TeraFlex 9550 VSS Twin-Tube Shocks (# 1545200).
