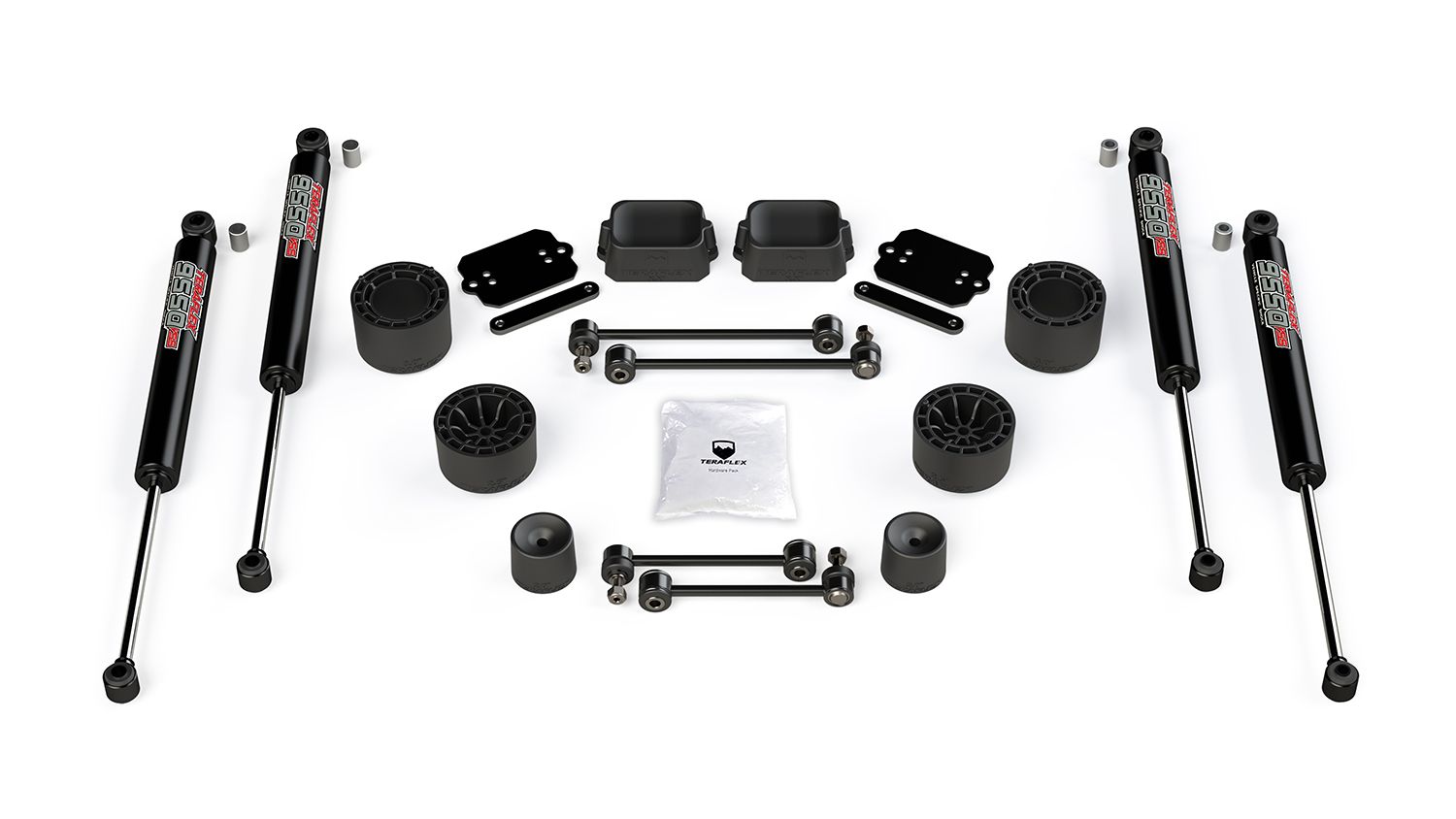

JL 4dr Rubicon: 2.5” Performance Spacer Lift Kit & 9550 VSS Shocks

The TeraFlex JL 4dr Rubicon: 2.5” Performance Spacer Lift Kit is the most economical way to fit larger tires and increase ground clearance on your JL Wrangler Unlimited Rubicon with the fewest modifications. Also fits EcoDiesel models. We recommend Falcon Performance Shocks or TeraFlex 9550 VSS Twin-Tube Shocks. These are the only shock absorbers engineered to work with TeraFlex lift coil spring spacers to improve compression and rebound for optimal vehicle stability. The 2.5” Performance Spacer Lift Kit is offered with TeraFlex 9550 VSS Twin-Tube Shocks, with shock extensions, or without shock absorbers or extensions. Falcon Performance Shocks are available separately.

Fitment Info:

Vehicle(s):

• JL Wrangler Unlimited Rubicon (4-door) including EcoDiesel

Specs:

• Lift Height: 2.5”

Max Tire Diameter:

• Rubicon Fenders: 35” (w/ 2” front & 2” rear bump stops strike pad extensions)

• Rubicon Fenders: 37” (w/ 2.5” front & 3” rear bump stops strike pad extensions/shims)

Product Notes:

• Shorter spacers in the front correct the factory nose-up rake on JL 2-door models.

• Taller spacers in the front correct the factory nose-down rake on JL 4-door models.

• CASTER CORRECTION RECOMMENDED, BUT NOT REQUIRED — NOT INCLUDED.

• REQUIRES aftermarket wheels w/ 4.75” backspacing or less – or 1.75” Wheel Offset Adapter Kit (# 1057000) for stock wheels – NOT INCLUDED.

• Models with plastic bumpers REQUIRE removal of bumper-to-fender wind deflector/splash guards to fit 35” or larger tires.

• Rubicon fenders REQUIRE 2” Front and 2” Rear Bump Stop Strike Pad Extensions (INCLUDED) to fit 35” tires.

• Rubicon fenders REQUIRE 2.5” Front and 3” Rear Bump Stop Strike Pad Extensions/Shims to fit 37” tires. REQUIRES 0.5” Bump Stop Strike Pad Shim Kit (# 1959300) — NOT INCLUDED.

• REQUIRES longer shocks or Shock Extensions (# 1985200) (NOT INCLUDED in base kit) — Falcon Performance Shocks or TeraFlex 9550 VSS Twin-Tube Shocks (# 1545250 – INCLUDED) RECOMMENDED.
