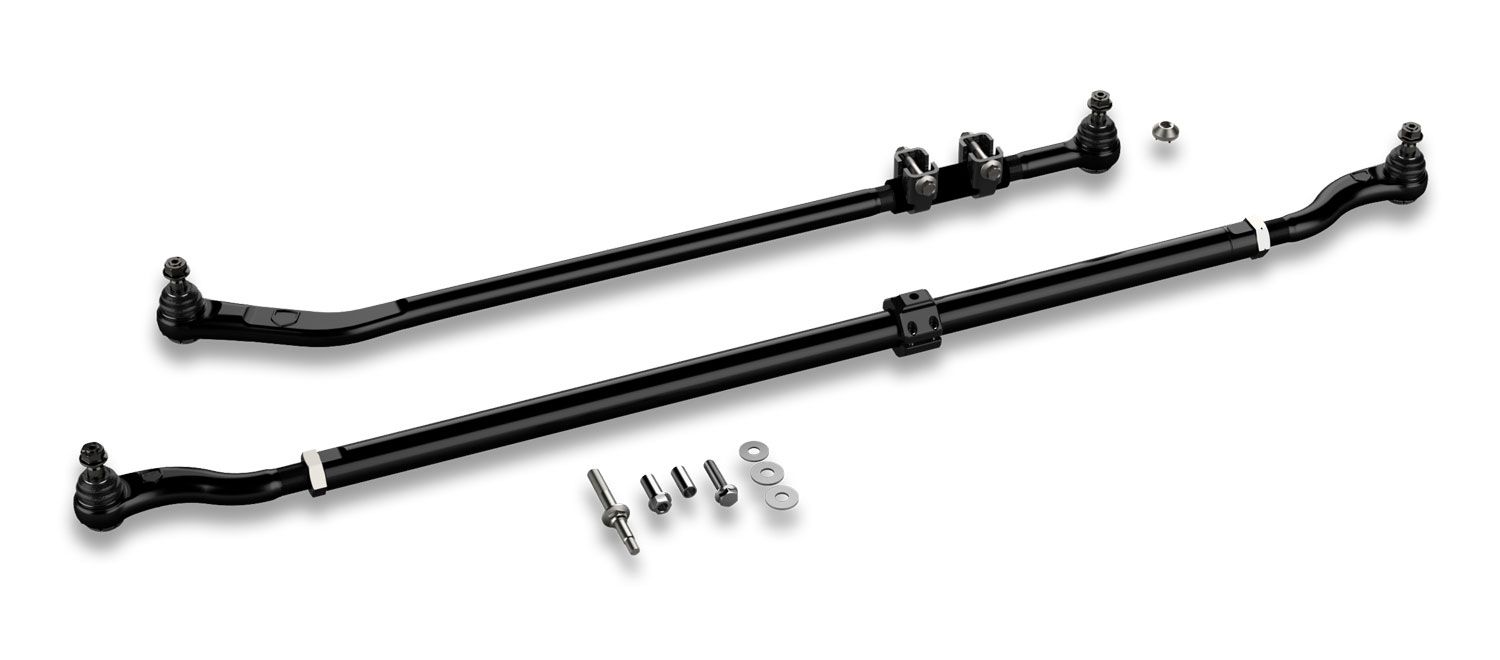

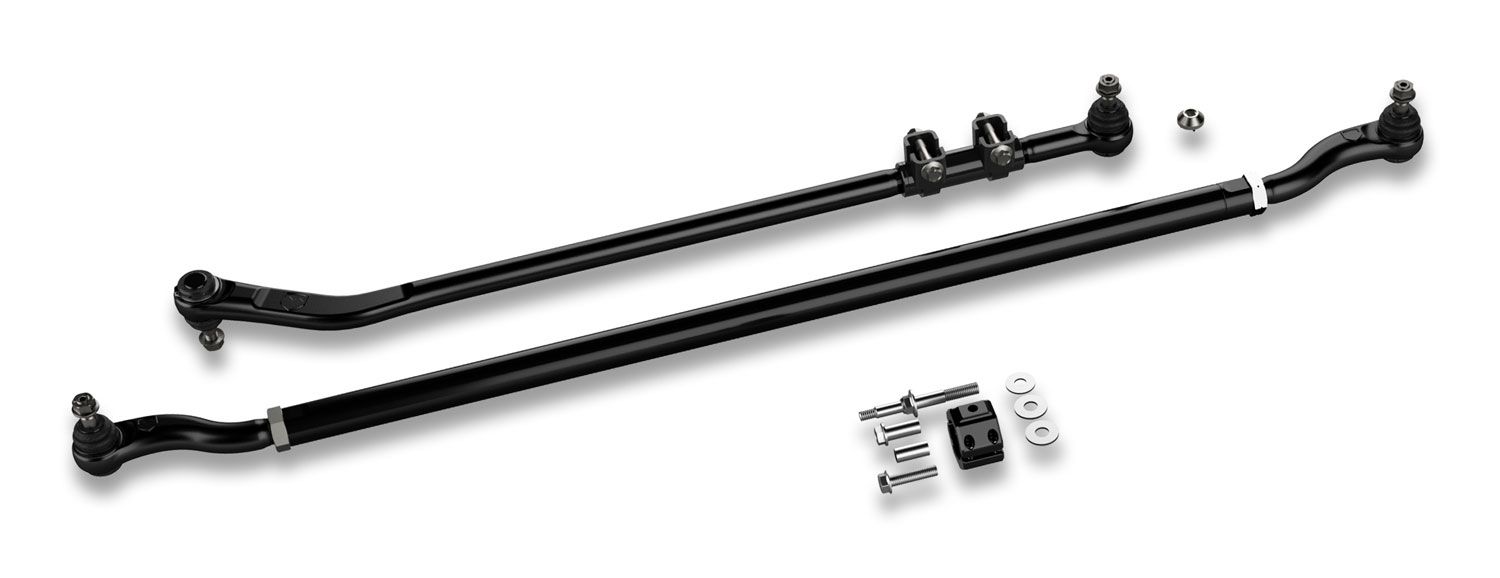

JK: HD Chromoly Tie Rod Kit & HD Forged Drag Link Kit

The TeraFlex JK: HD Forged Drag Link Flip Kit & HD Chromoly Tie Rod Kit withstands extreme conditions and abuse that typically causes factory steering components to bend and fail on lifted JK Wrangler/Unlimited models. Flipping" the HD Forged Drag Link (50% stiffer than the factory) over the Knuckle helps eliminate front-end shimmy and other alignment issues. The axle end joint is flipped 180 degrees so it can be pressed down into the top of the knuckle.

Features & Benefits:

HD Forged Drag Link Flip Kit (# 1853930)

• Relocates drag link over the knuckle to the top of the knuckle's steering arm (Left-Hand-Drive only)

• Axle end joint is flipped 180 degrees to be pressed down into the top of the knuckle

• Bolts directly to new High Steer Knuckle (not included)

• 50% stiffer than the factory drag link to help eliminate front-end shimmy and other alignment issues

• 1.25" O.D. fully forged drag link eliminates excess movement during hard steering maneuvers

• Utilizes oversized DOM factory-style adjusting collar and pinch clamp for simple adjustments

• Tie rod joint incorporates same features found in TeraFlex Ball Joints, including 4140 Chromoly ball/stud and 1045 carbon steel housing

• Adjustable joint preload tension to ensure proper long-term durability

• Joint is pressed into rod end housing and secured w/ snap ring

• Provides clearance for factory 17" wheels HD Chromoly Tie Rod Kit (# 1853910)

• HD 1-5/8" O.D. 4140 heat-treated Chromoly steel

• More than 200% stronger than factory tie rod

• Forged tie rod housing designed specifically for JK Wrangler/Unlimited

• Tie rod end joint incorporates same features found in TeraFlex ball joints, including 4140 Chromoly ball/stud and 1045 carbon steel housing

• Features adjustable rod end preload tension to ensure long-term durability

• The joint is pressed into the rod end housing and secured w/ a snap ring

• Tie rod end joint rotation is limited to 14 degrees of movement to minimize tie rod roll

• Provides clearance for factory 17" wheels

• Steering Stabilizer Relocation Mount Bracket Kit – HD Tie Rod (# 1123160) Steering Stabilizer Relocation Mount Bracket Kit – HD Tie Rod (# 1123160)

• Fits heavy-duty 1-5/8" tie rod

• 6061-T6 aluminum clamp and forged 10.9-grade stud

• Moves steering stabilizer up nearly 2.5" to help reduce damage to the stabilizer shaft or body

• Repositions stabilizer to reduce tie rod roll" associated w/ stabilizer misalignment

Fitment Info:

Vehicle(s):
• JK Wrangler (2-door)
• JK Wrangler Unlimited (4-door)
Axle(s):
• Dana 30 front axle
• Dana 44 front axle
Lift Height:
• 0–3” Lift

Product Notes:

• REQUIRES aftermarket wheels w/ 4.75” backspacing or less – or 1.25” Wheel Offset Adapter Kit (# 1055000) for stock wheels – NOT INCLUDED.

• The included Steering Stabilizer Relocation Bracket is NOT compatible w/ Falcon Nexus EF Steering Stabilizers — REQUIRES Falcon 1-5/8” Steering Stabilizer Tie Rod Clamp Kit (# 99-01-01-158).

• REQUIRES additional modifications/components to flip the Drag Link over the axle to correct track bar angle, optimized steering geometry, and improve handling – NOT INCLUDED.

• High Steer Knuckle Kit (# 4390870) Front Track Bar Drop Bracket & Frame Brace Kit (# 1600444), HD Tie Rod (# 1853910), and Steering Stabilizer Relocation Mounting Bracket (# 1123160) available separately.
