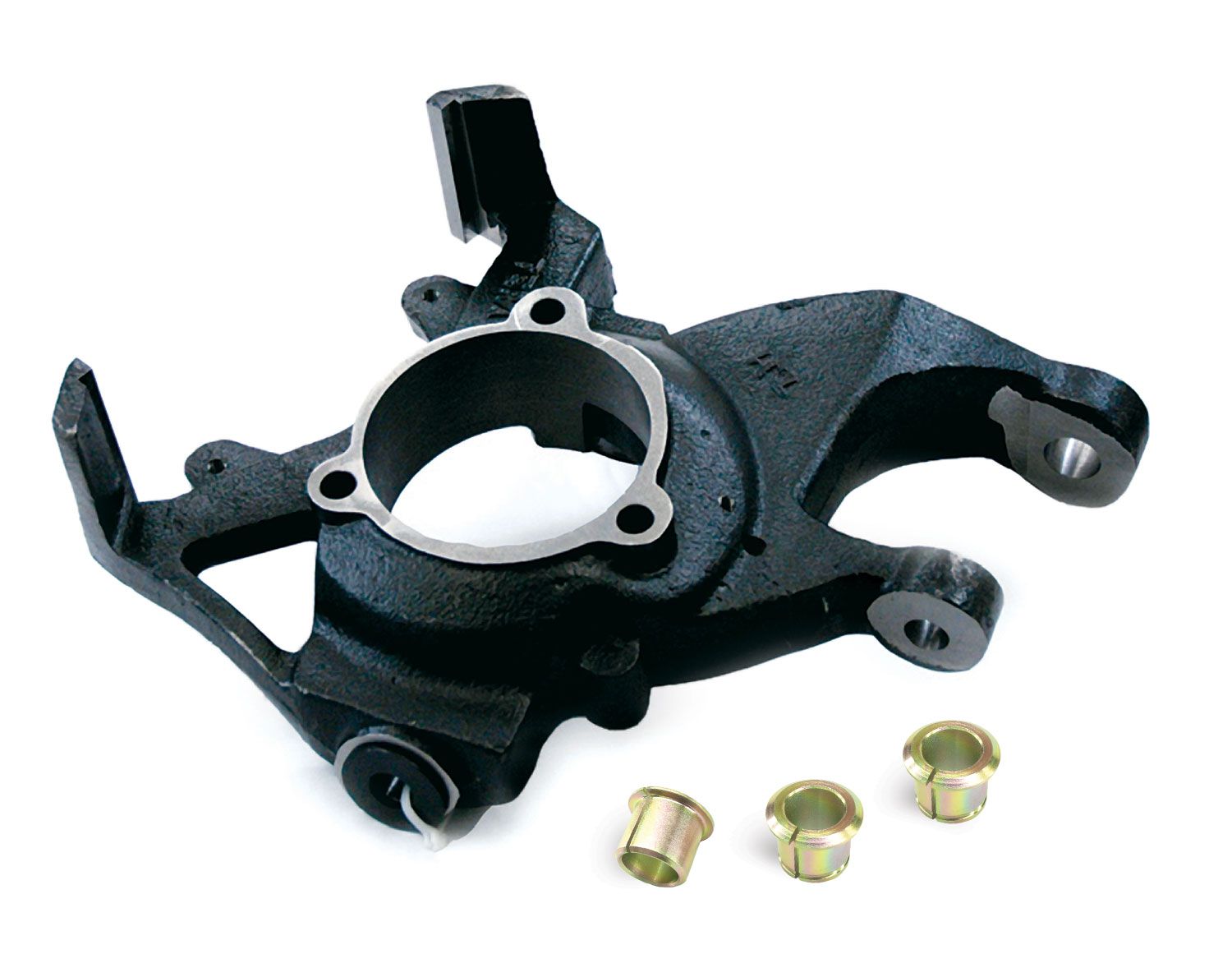

TJ: Dana 30/44 High Steer Knuckle

The TeraFlex TJ: Dana 30/44 High Steer Knuckle beefs up the steering components of the Dana 30 or Rubicon Dana 44 front axle helps maximize steering component ground clearance and restores correct steering geometry for superior highway drivability. Highly recommended for TJ Wrangler/Unlimited models with 4" or more lift. NOT an all-inclusive kit – may require additional modifications. Also fits 1994-1997 YJ Wrangler ZJ Grand Cherokee XJ Cherokee and MJ Comanche with Dana 30 front axles – requires additional modifications.

Features & Benefits:

• Cast from HD ductile iron

• Reinforces key section areas prone to stress and deflection

• Maintains correct steering geometry angles for superior highway drivability

• Provides HD solution for several weak vulnerabilities found in the stock axle steering configuration

• Increases tie rod ground clearance by more than 1-1/8" to reduce tie rod damage and bending

Fitment Info:

• TJ Wrangler (short wheelbase)

• LJ Wrangler Unlimited (long wheelbase)

• 1994-1997 YJ Wrangler

• ZJ Grand Cherokee

• XJ Cherokee

• MJ Comanche

• Dana 30 front axle

• Rubicon Dana 44 front axle

• 4-6” Lift

Product Notes:

• NOT an all-inclusive kit – REQUIRES additional modifications.

• Does NOT INCLUDE HD Drag Link Kit, HD Tie Rod Kit, Drop Pitman Arm, Sway Bar Mount Kit, or Sway Bar Links.

• MAY REQUIRE Front Sway Bar Quick Disconnect Kit, High Steer Front Track Bar Frame Bracket Kit, and/or offset wheels.

• Will work w/ 15” wheels w/ 3.5” or less backspacing.
